Stirling Engine

Period
January 2026 - May 2026
Location
Philadelphia, PA
Stirling engine lightbox photograph 1.

Overview

Designed and built a 105-component Stirling heat engine, taking the project from CAD and drawing creation through machining, assembly, and testing.

My Role

  • Prepared engineering drawings and machining plans for shop approval.
  • Machined 15 components on CNC mills and lathes using Mastercam and conversational programming.
  • Used GD&T, DFMA, and tolerance stack-up analysis to improve part fit.
  • Designed and CNC-machined a jet-engine-inspired flywheel with a contoured surface polished to a mirror finish.

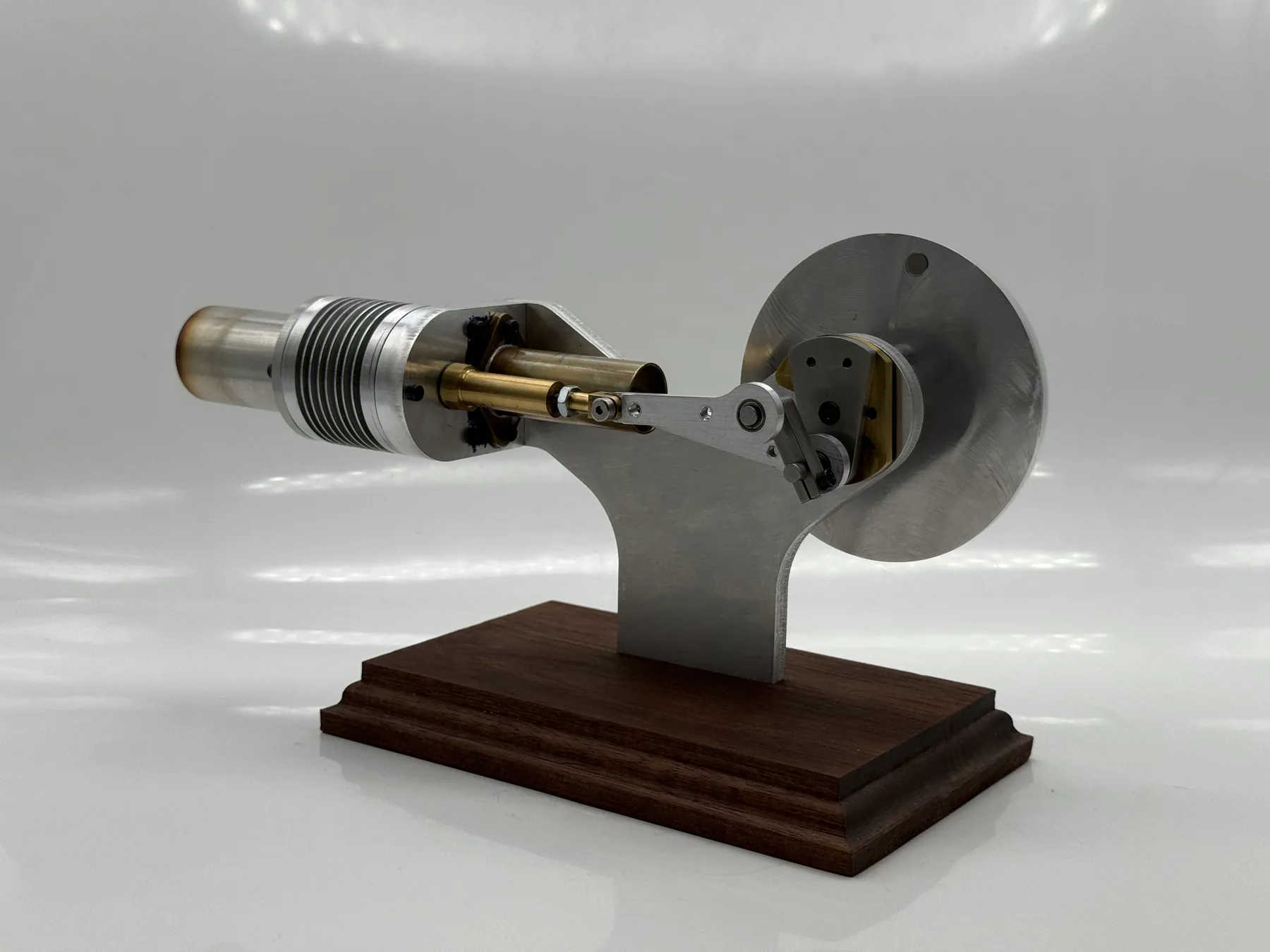

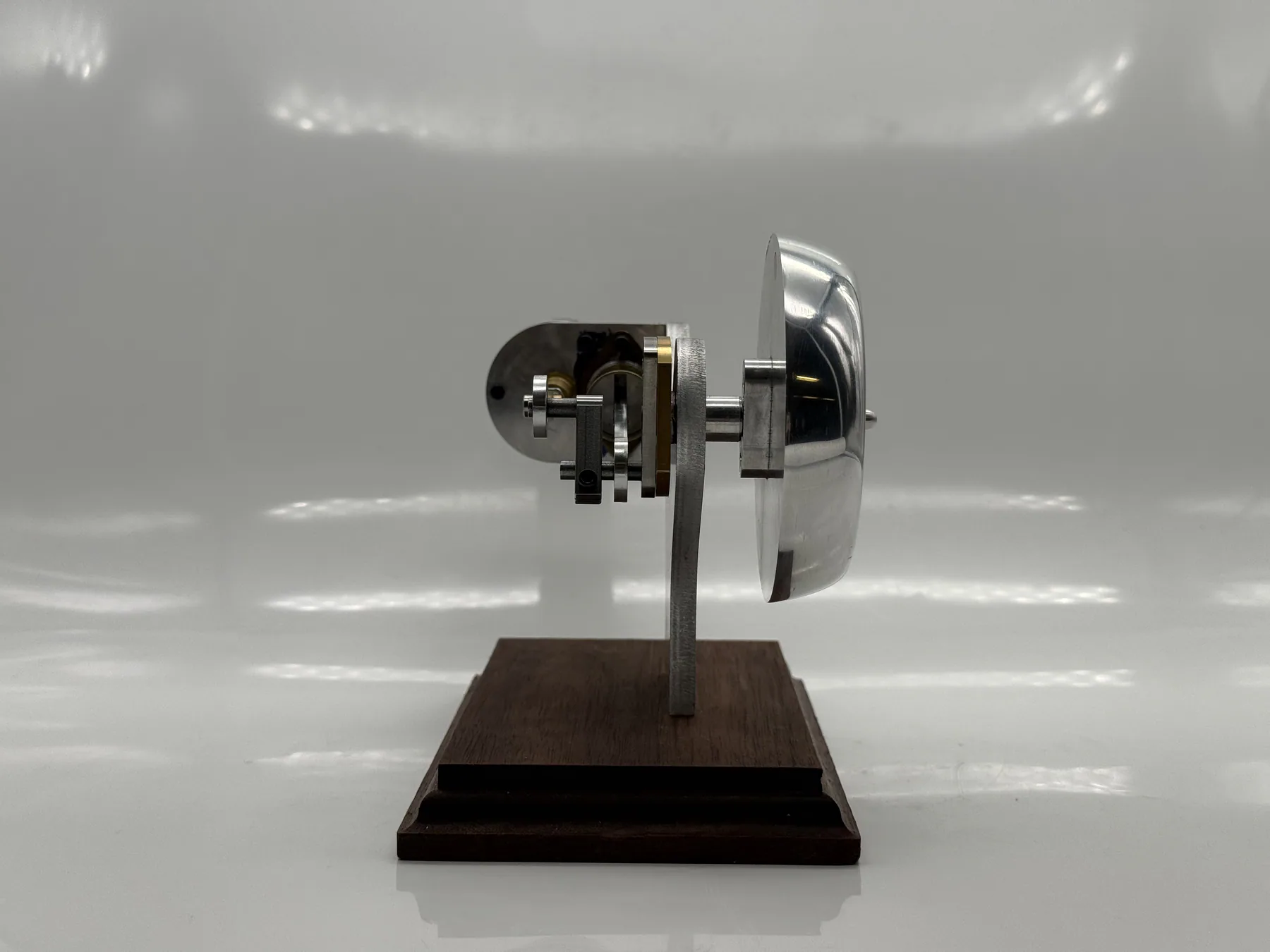

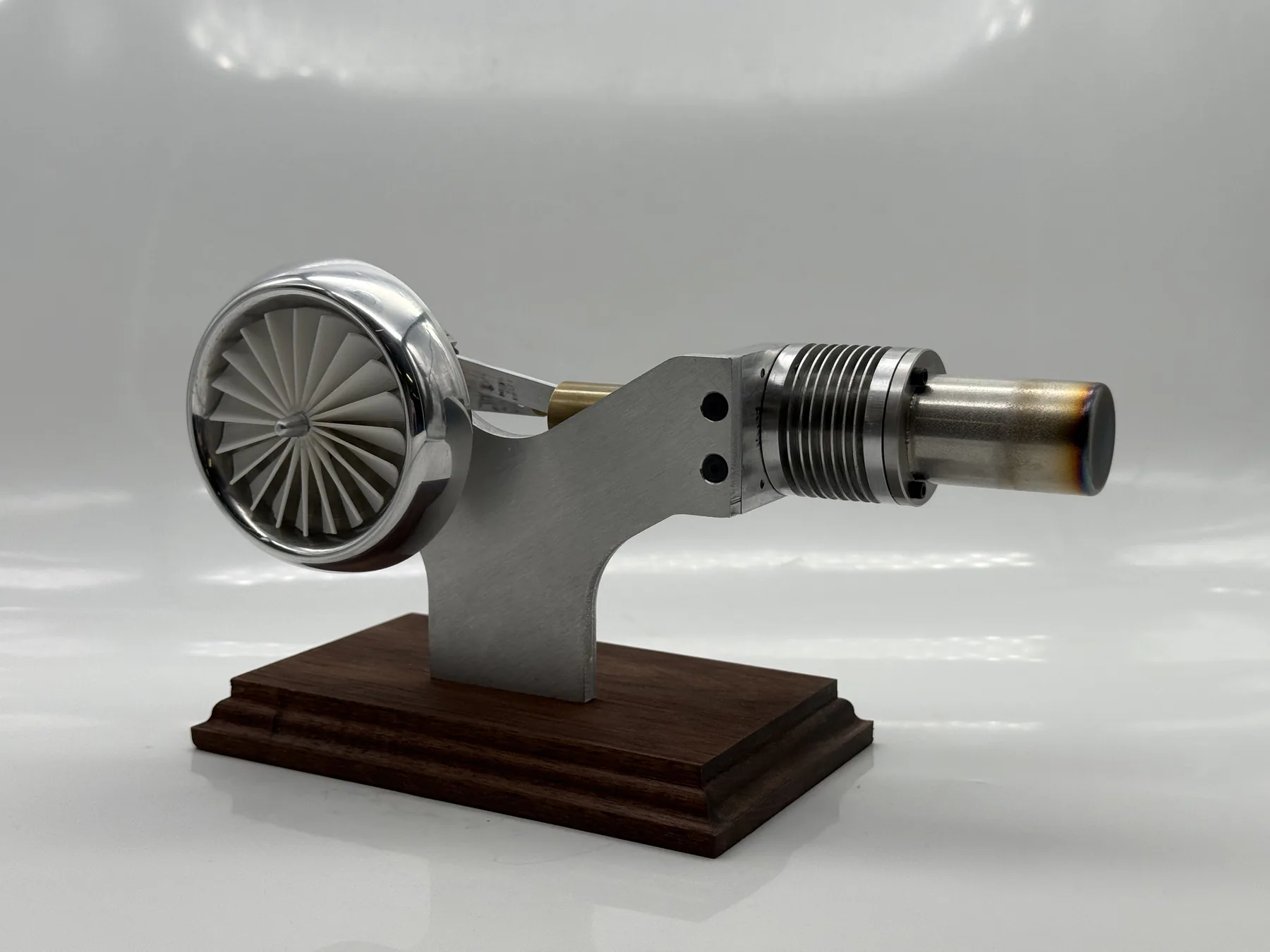

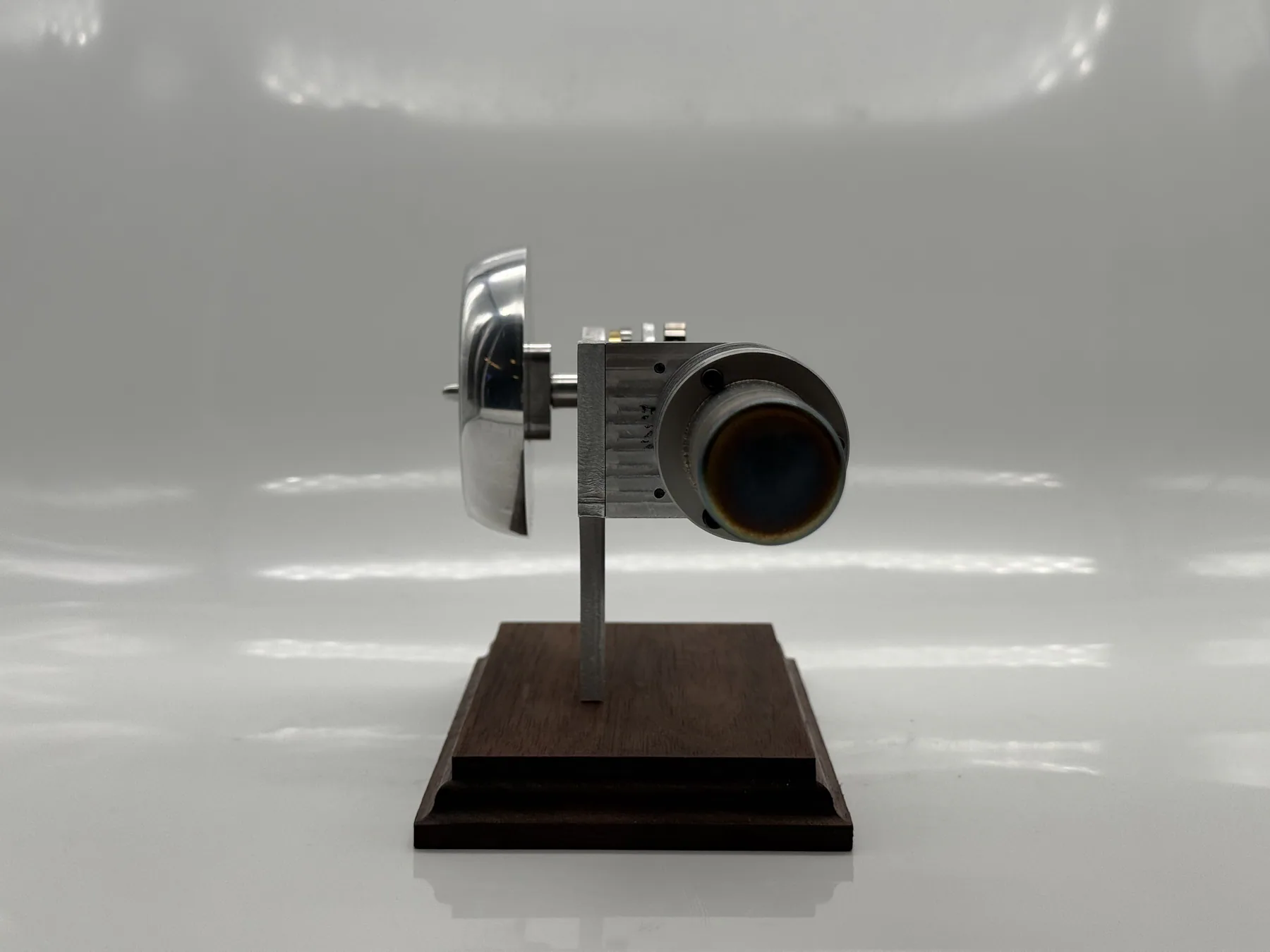

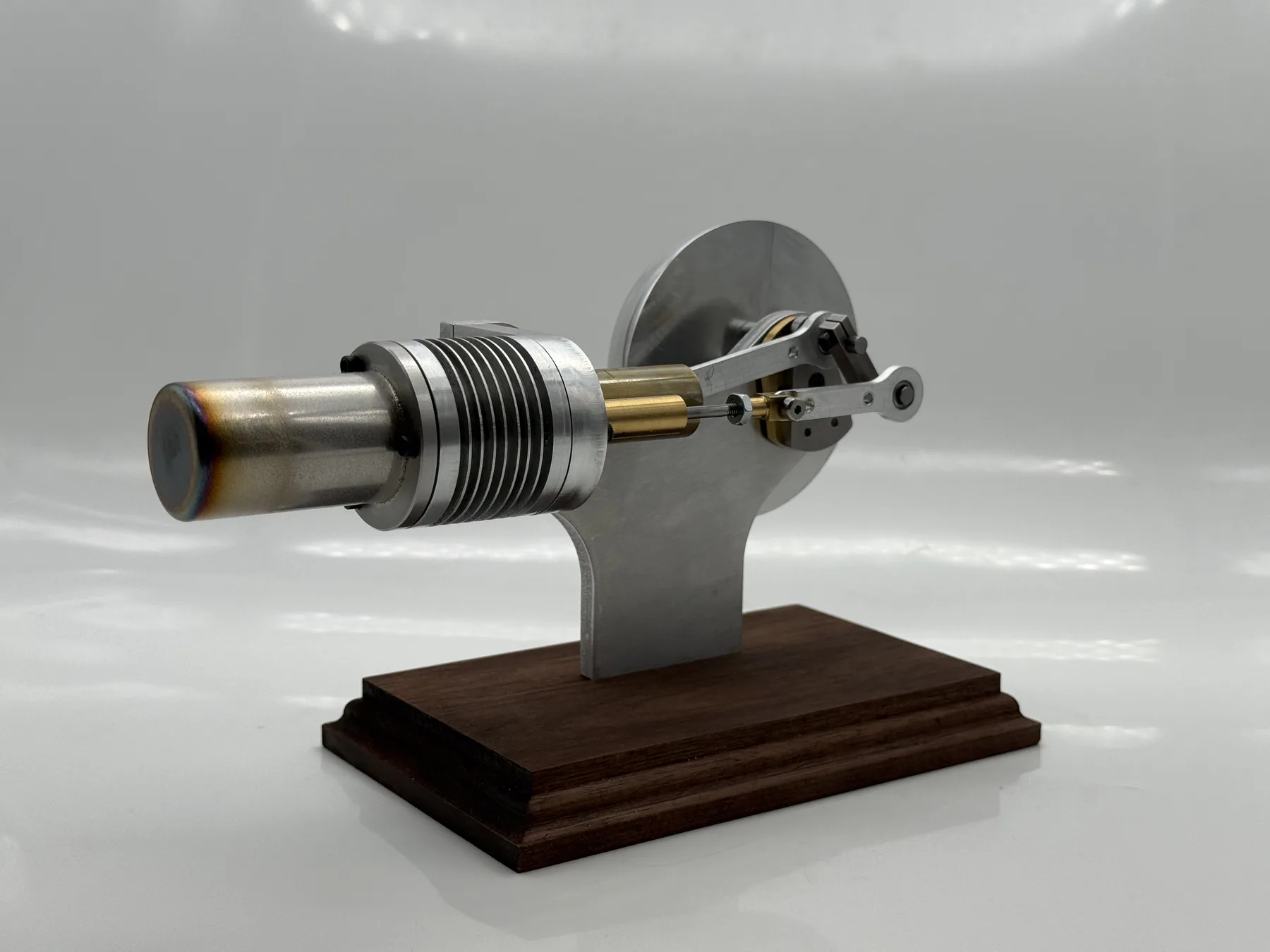

Stirling engine lightbox photograph 1.

Photo 01of 07

Test run 1Stirling engine test run.Watch on YouTube
Test run 2Additional Stirling engine test run.Watch on YouTube
HubStirling engine hub machined using conversational programming.Watch on YouTube
FlywheelStirling engine flywheel machined using Mastercam.Watch on YouTube

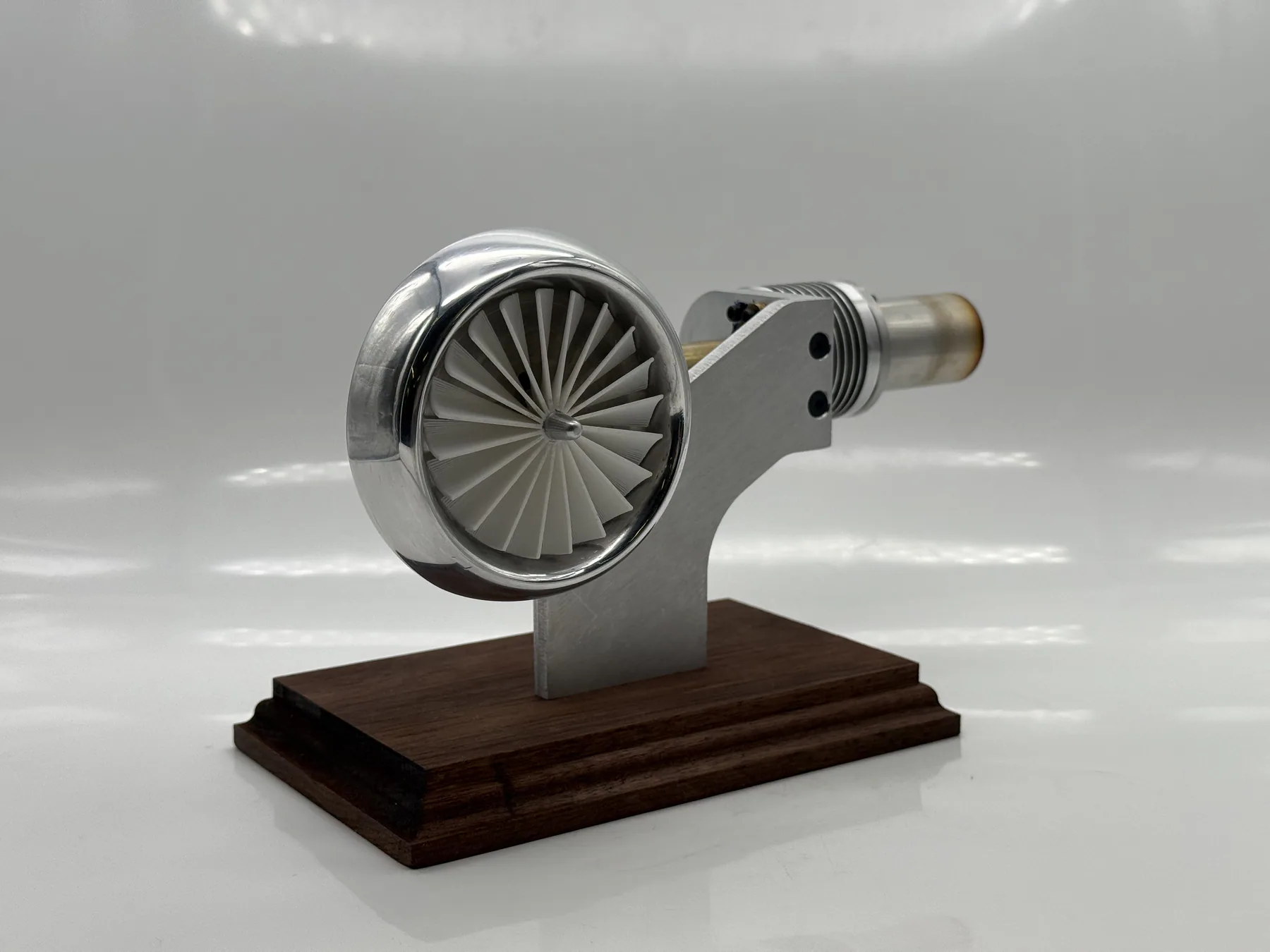

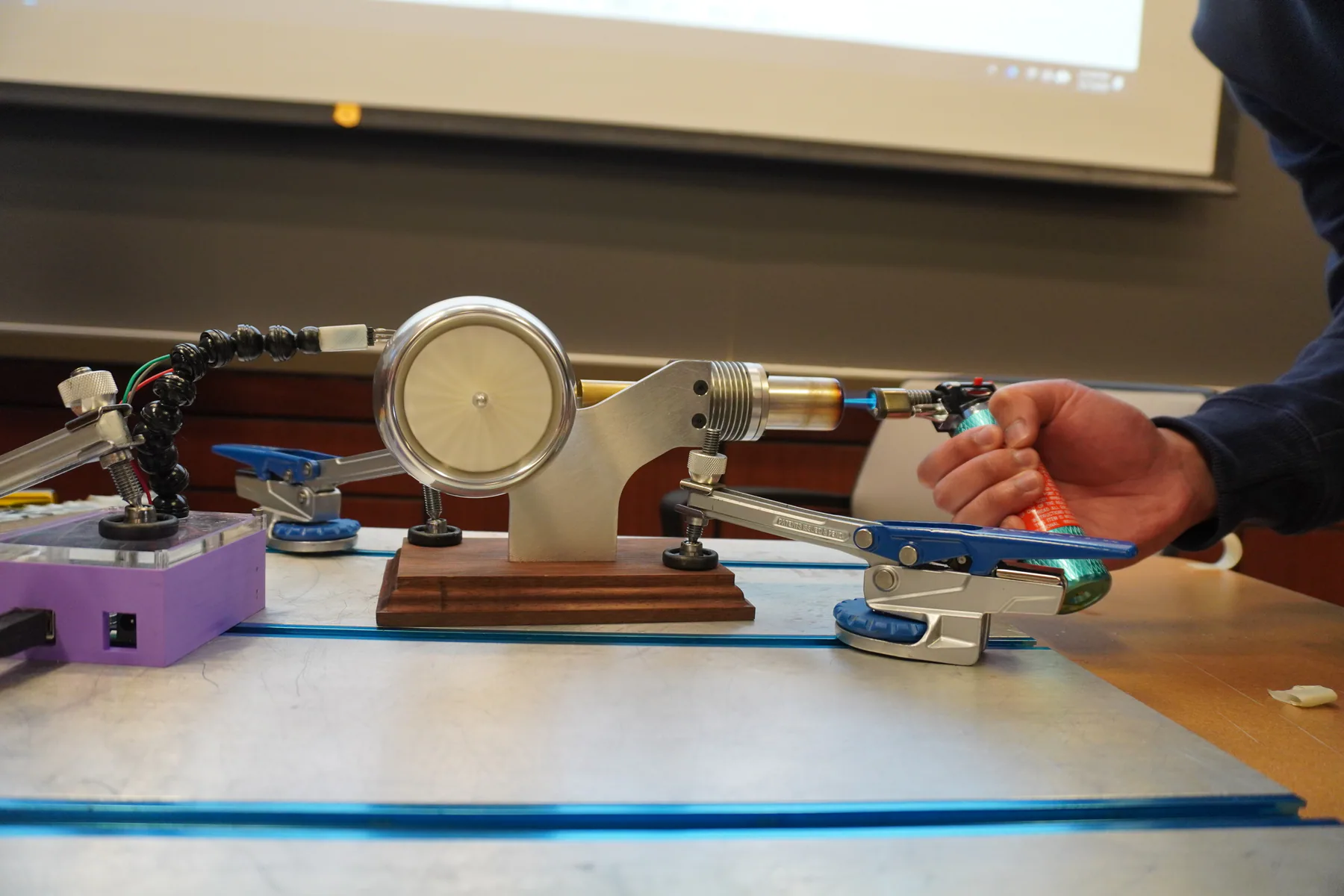

Completed Stirling engine with a turbine-inspired flywheel.
Engine testing

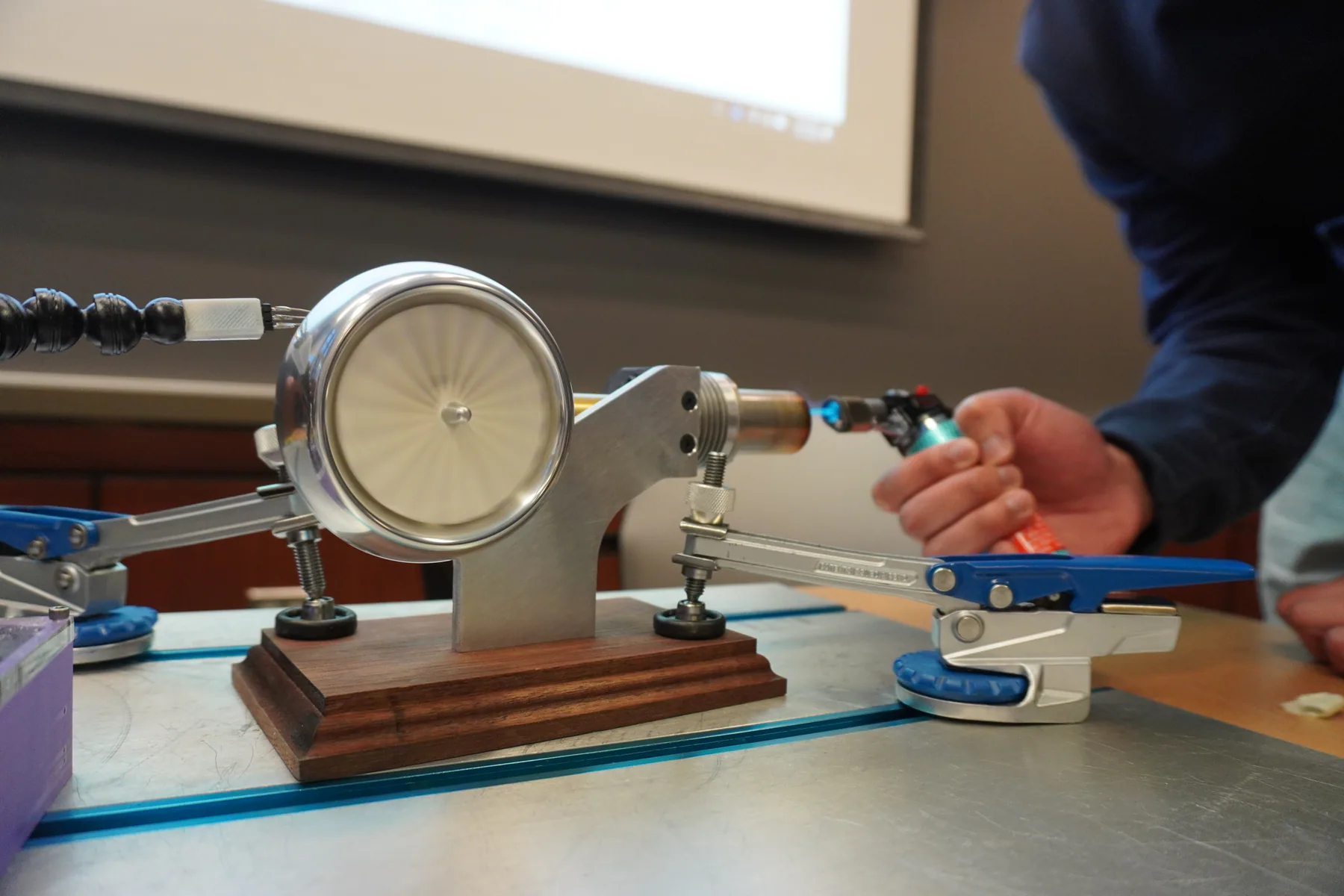

Stirling engine running during a tabletop demonstration.
Engine testing

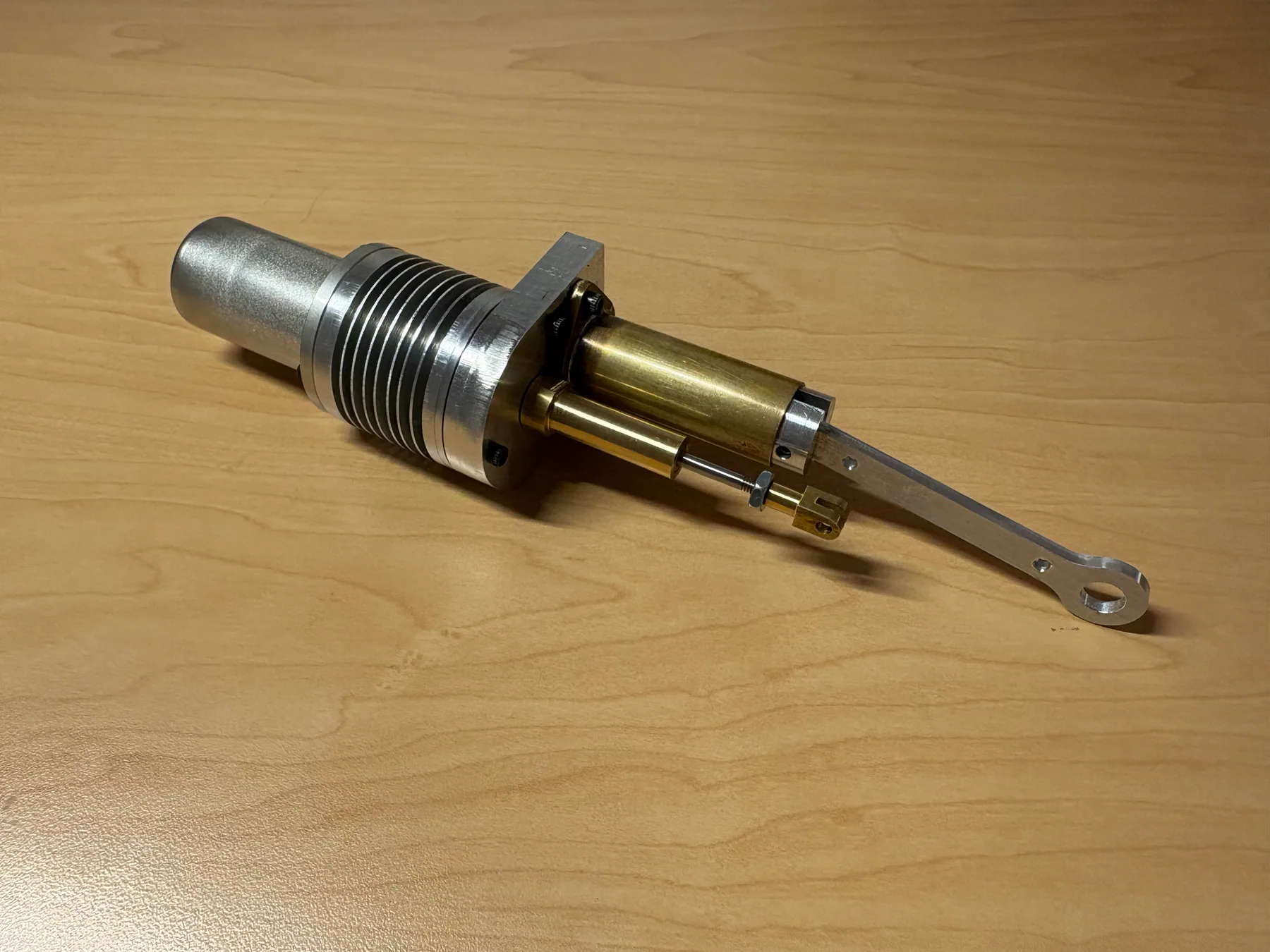

Machined Stirling engine component with threaded features.
Back-end assembly

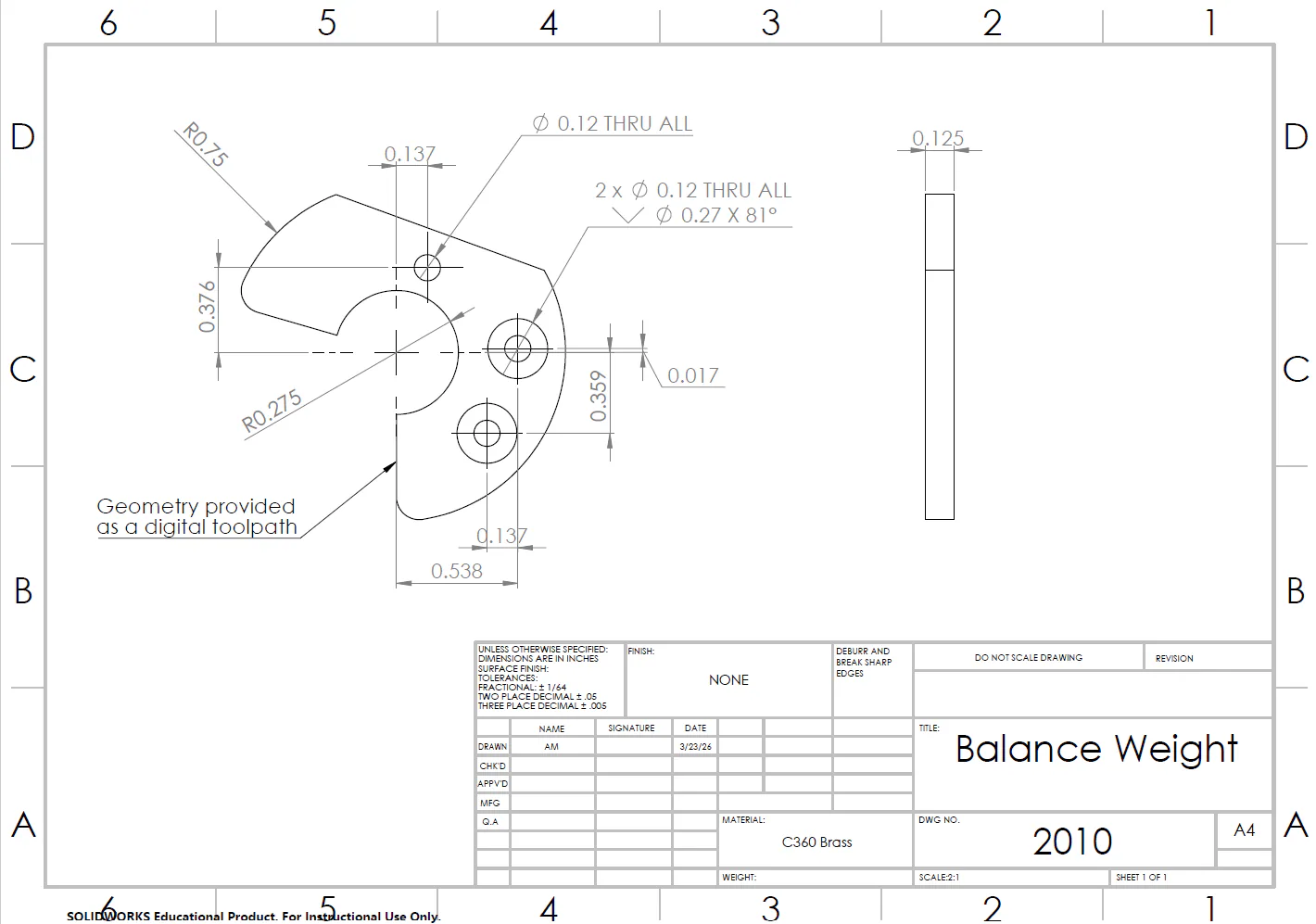

Manufacturing drawing for the engine balance weight.
Manufacturing drawing
Side-view CAD render of the Stirling engine.
Side-view render
